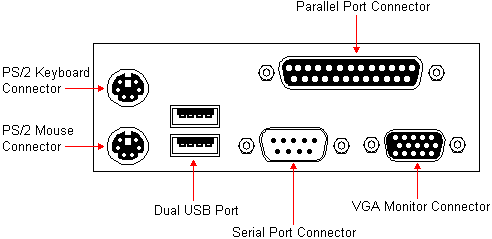

| Connector | Description |
|---|---|
| Dual USB Port (J1L1) | Two stacked standard USB ports |
| Parallel Port Connector (J1J2) | Female DB-25 |
| PS/2 Keyboard Connector (J1M1) | Female 6 pin mini-DIN |
| PS/2 Mouse Connector (J1M1) | Female 6-pin mini-DIN |
| Serial Port Connector (J1K1) | Male DB-9 |
| VGA Monitor Connector (J1J1) | Female High Density D-Shell |
